Cat# DH.WAC05100

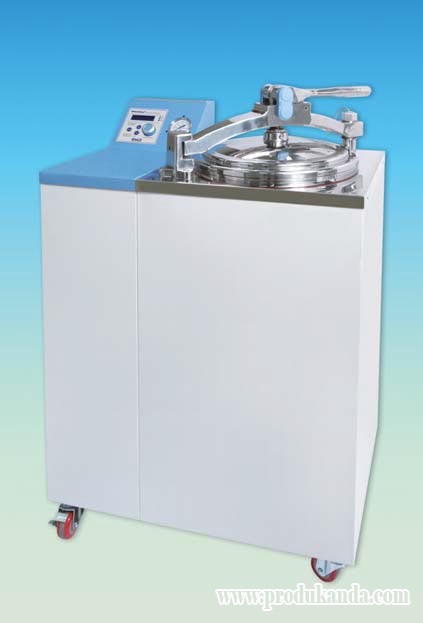

“ WAC-100” Autoclave, 230V, 100 L., with Cable
È Ideal for Biotechnology, Clinical, Environmental, Medical and Food Industry.
È Innovative Easy-to-Use Digital Fuzzy Controller.
È Top-loading type Sterilizer for Easy Loading of Large Working Volume.
È Casters equipped for Excellent Mobility. È Digital LCD with Back-Light Function.
È Digital Timer Function -‘ Delay Time’ and‘ Operation Time’ can be Controlled.
È Solid / Liquid Mode can be chosen by a customer considering a Sample Phase.
È Safety and Easy to Use Lever-type Sliding Door. È Complete Safety Pressure Mechanism.
È Automatic Over Pressure Release Valve ensure User Safety.
È Electronic Door Lock Sensing System for User Safety.
È Heat-Protective Lid Cover for User Safety.
Capacity : 100 L
Temp. Range : Ambient 5 to 132oC
Accuracy : ± 0.5 at 121
Pressure & Gauge : 1.2 kgf/ cm2 at 121 / 2.0 kgf/ cm2 at132 , 0 ~ 3 kgf/ cm2
Sterilization mode : Solid- or Liquid-mode
Heating Power/ Consumption : 2kW x 2
Timer & Alarm : 99 hr 59 min 59 sec, Error status & Timer-end
Display : Digital LCD Display with Back-Light Function
Controller : Digital Fuzzy-Control System ( Fully Automatic)
Door & Closing System : Lever-type Sliding Door / Safety Electronic Door Closing System
Safety Circuit : Over-Temp./ -Pressure/ -Current protection, Sensor Error Detection
Material : Stainless Steel (  304) -Pressure Vessel, Powder Coated Steel-External
Basket : 2ea of Stainless Steel Wire Baskets are Included
Basket Dimension ( mm) : ¦ 420× h240
Dimension ( w× d× h) :
Inner ( mm) : ¦ 450× h630
Outer ( mm) 780× 580× 900
Packing Size : ( mm) 940× 800× h1, 350 mm
Gross Weight ( kg) : 173kg
Power Supply : 1Phase - AC 230V, 50/ 60Hz
È 2ea of Wire Baskets are included in the All Autoclaves
